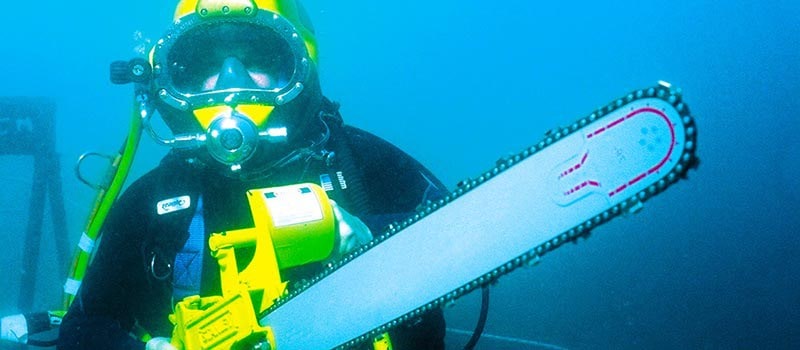

The DS11 uw Underwater Hydraulic Diamond Chain Saw is specifically designed to cut solid concrete underwater. Cuts square corners without over-cut and can plunge cut sea walls up to 18" thick. Two available bar lengths (15" and 18") and two different chains depending on the amount of rebar and hardness of the concrete. A minimum of 20 PSI water pressure is required at the saw for cooling and lubrication of the bar and chain. Painted hi-visibility yellow.

Features:

(+) Multi position trigger handle and Wall Walker reduces diver fatigue

(+) Integral Stanley Hyrevz gear motor produces high torque

(+) Direct drive motor – no chain coast when trigger is released

(+) Stainless steel spool and fasteners

(+) Interlocking safety trigger and hand guard

(+) Trigger activated water to bar and chain for lubrication

(+) Heavy duty cast aluminum

(+) Cut steel reinforced concrete with Pinnacle chain

(+) Pinnacle Chain: For Steel Reinforced, Heavy Aggregate Concrete

(+) Ultra Chain - For Light Wire Mesh, Soft/Green Concrete

TECHNICAL
SPECIFICATIONS

HP12

HD45 uw

BR45 uw

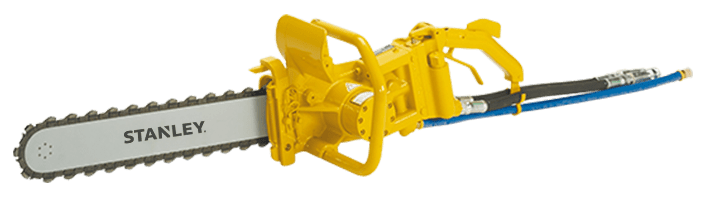

PARAGON: Underwater Hydraulic Diamond Chain Saw Stanley DS11 uw
