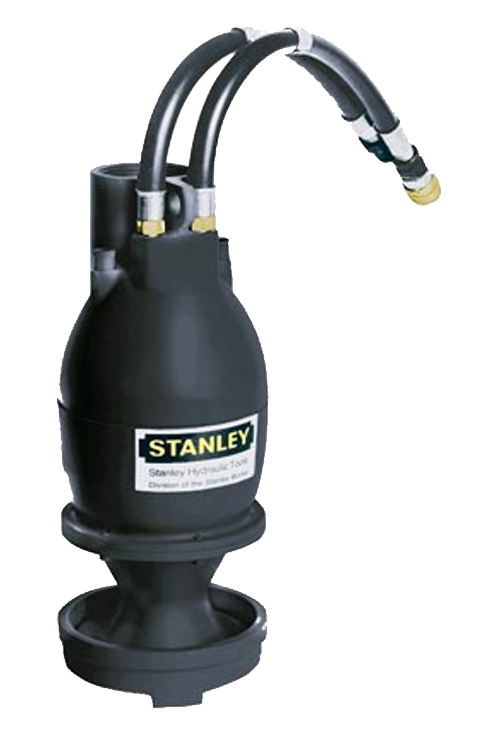

Hydraulic Submersible Pump Stanley SM21

Stanley SM21 Hidrolik Dalgıç Pompa

The Stanley SM21 Hydraulic Submersible Water Pump is one of the lightest and most durable pumps available. It’s capability of pumping 300 gpm (1135 lpm) at a 50 foot head make it ideal for vaults, manholes and more specifically in confined narrow openings. The SM20 will out-pump most all gasoline engine driven pumps. There is no recoil starting, priming or suction hose as with gas engine driven pumps. It can be run dry without damage.

The cast iron impeller of the SM21 is within 3/4 of an inch of the base allowing the pump to remove more liquids than other pumps. With only a few moving parts, the SM21 is virtually maintenance free.

Features:

(+) 4-9 gpm (15-34 lpm) operating range

(+) Submersible (no priming required)

(+) Able to run dry without damage

(+) 3/8 inch strainers

(+) Lifting eyes

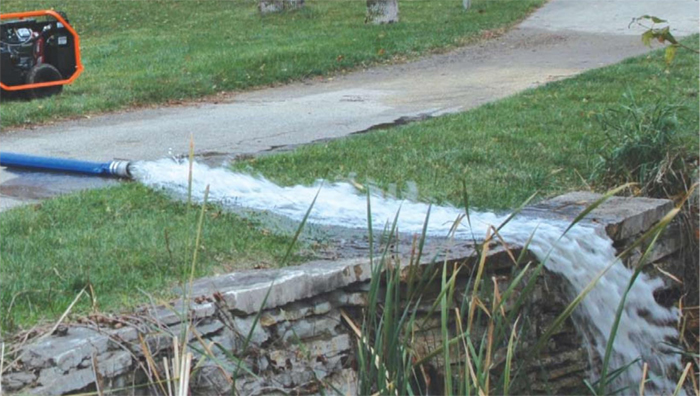

uygulama-dalgic-pompa-2

 logo-stanley
SM21

TECHNICAL
SPECIFICATIONS

Discharge
2,5"
Performance
1135 lpm
Hydraulic Flow
15-34 lpm
Hydraulic Pressure
70-140 bar
Weight
9,1 kg
Length
41 cm
Width
16 cm
Couplers
HTMA Flush Face


Recommended
together

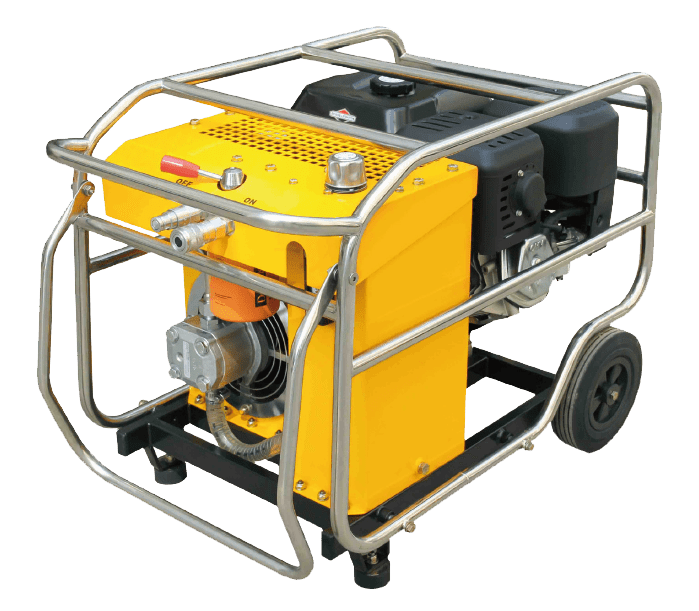

Stanley-GPV09-hidrolik-guc-unitesi

GPV09

Stanley-SM20-hidrolik-dalgic-pompa

SM20

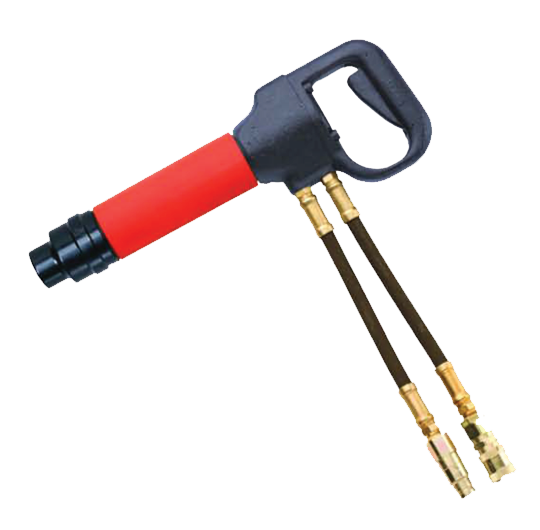

Stanley-CH15-hidrolik-kirici
