Underwater Hydraulic Breaker Stanley BR45 uw

Stanley BR45 uw Sualtı Hidrolik Kırıcı

The BR45 uw is the smallest breaker in the Stanley Hydraulic Tool lineup of underwater breakers for breaking concrete, coral removal, or rod drving. The feathering on/off valve controls speed and allows easier initial tool placement. Standard 1" hex chuck and latch retainer. Painted hi‑visibility yellow

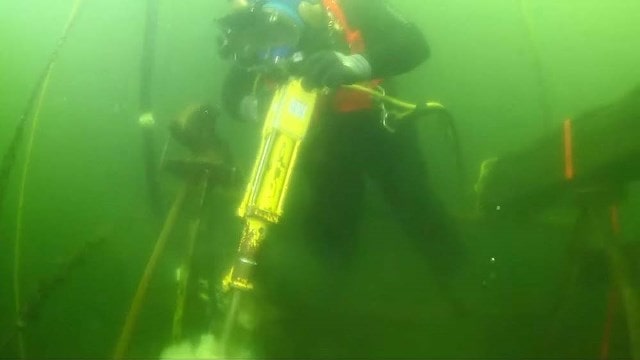

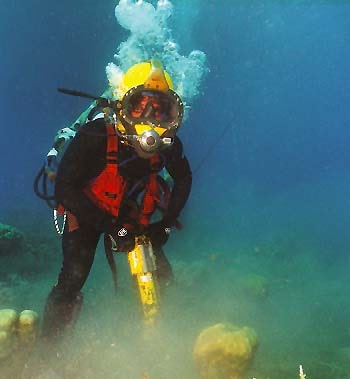

Stanley BR45 Sualtı Hidrolik Kırıcı Uygulama 01    Stanley BR45 Sualtı Hidrolik Kırıcı Uygulama 02

video-link  Video

Features:

(+) It provides safe working opportunity without air bubbles

(+) T-Handle with large on/off trigger for precise control

(+) Stainless Steel spool and fasteners

(+) Trouble free diaphragm accumulator provides additional blow energy and reduces recoil

(+) Feathering on/off valve allows easy initial tool bit placement

(+) Uses standard 1" x 4 1 ⁄4" (25x108 mm) hex shank tool bits

(+) High visibility yellow paint

(+) Operates in any position

unite    hidro    ismakinasi    kamyon 1    traktor



Su Altı Hidrolik Ekipmanlar Uygulama

 logo-stanley
BR45 uw

TECHNICAL
SPECIFICATIONS

Capacity
25x108 mm hex.
Performance
1525 bpm @30lpm
Hydraulic Flow
26-34 lpm
Hydraulic Pressure
105-140 bar
Handle Type
T-Handle
Weight
19,5 kg
Dimensions (LxW)
64x35 cm
Couplers
HTMA Flush Face


Recommended
together

Stanley-HP8-hidrolik-guc-unitesi

HP8

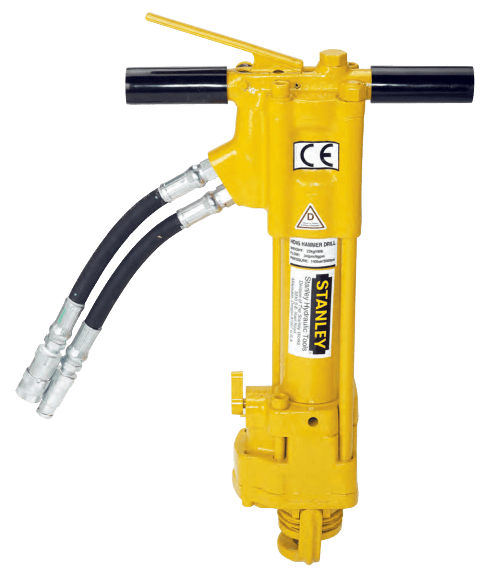

Stanley-HD45-uw-sualti-matkap

HD45 uw

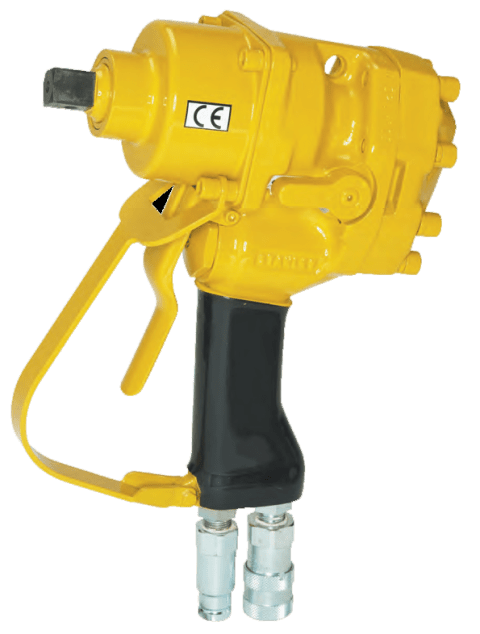

Stanley-IW12-uw-sualti-somun-sikma
