Hydraulic Power Unit Stanley HP12

Stanley HP12 Tek Çıkışlı Benzinli Hidrolik Güç Ünitesi

The HP12 hydraulic power unit is engineered for continuous professional use and is optimized to deliver ideal flows and pressures to both Type 2 and Type 3 hydraulic tools. Its powerful 23 HP Briggs & Stratton engine and best-in-class cooling system deliver the power and heat rejection pros need to keep tools working uninterrupted all day in all types of conditions. The HP12 features an intuitive throttle selector which makes changing flow rates very easy. Its feature-rich, dependable operation make the HP12 the industry choice for high-flow applications.

Stanley-HP8-uygulama-05 HP12 Hidrolik Güç Ünitesi Uygulama 02 HP12 Hidrolik Güç Ünitesi Uygulama 03

 video-link  Video 1  video-link  Video 2

Avantajları:

(+) One 8 GPM/30 LPM Circuit, One 10 GPM/40 LPM or One 12 GPM/45 LPM Circuit

(+) Heat rejection capacity exceeding 5 hp.

(+) Manual throttle control

(+) Air-oil cooler

(+) Lift and latch handle

(+) Pneumatic tires

(+) Maintenance-free battery

(+) Hydraulic and engine oil filter

Stanley-HP8-hidrolik-guc-unitesi-uygulama-08

 logo-stanley
HP12

TECHNICAL
SPECIFICATIONS

Engine Type
Gasoline
Power / Brand
23 HP Briggs & St.
Hydraulic Flow
1x30/40/45 lpm
Hydraulic Pressure
140 bar
Weight
150 kg
Dimensions
91x58x75 cm
ETHMA
D-E
Couplers
HTMA Flush Face


Recommended
together

Stanley-BR67-hidrolik-kirici

BR67

Stanley-SM50-hidrolik-dalgic-pompa

SM50

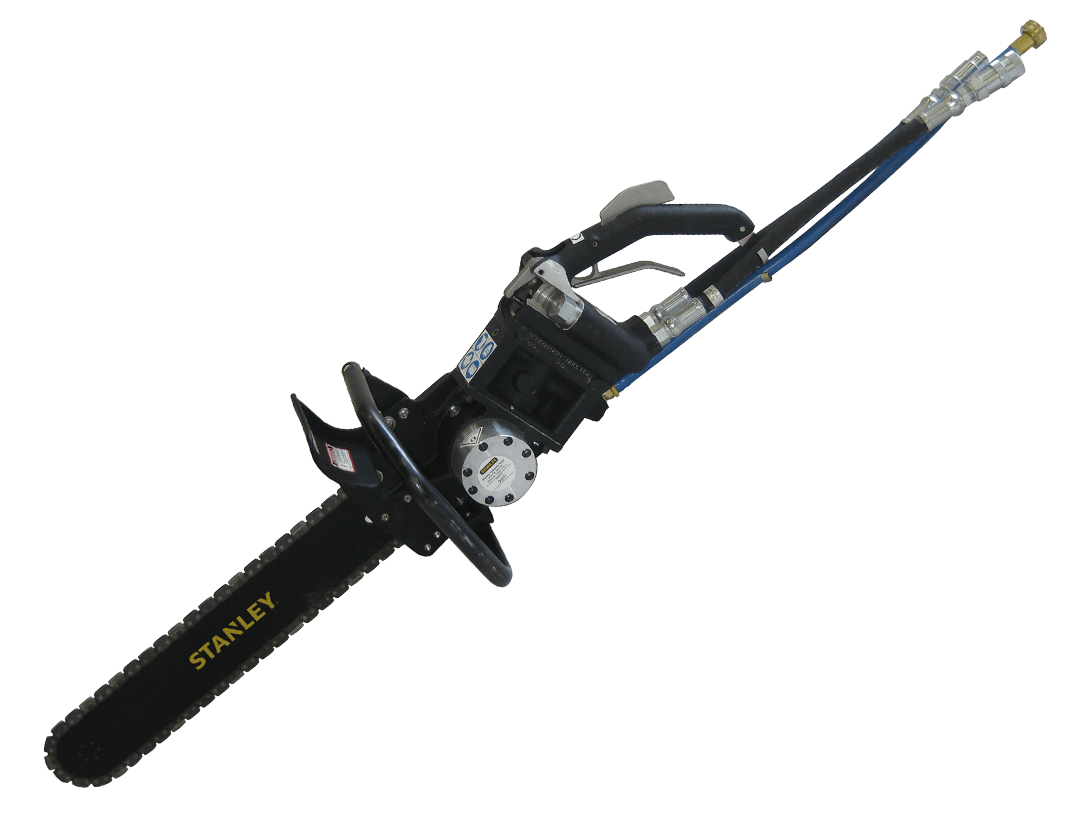

Stanley-DS12-zincir-testere-1
