Hydraulic Hammer Drill Stanley HD45

Stanley HD45 Hidrolik Darbeli Matkap

The Stanley HD45 Hydraulic Hammer Drill is a rotary, percussion tool for drilling in concrete, masonry, or asphalt using 736 Skil hex bits.

The HD45 is a heavy duty model designed for use in medium to heavy applications. It’s the ideal tool for drilling gas and water utility holes and setting anchor bolts.

Drills Holes from 3/4 in (19 mm) to 2 in (50 mm) in diameter and up to 29 in (73.7 cm) deep as well as core drilling up to 4 in (102 mm) in diameter.

Uses Standard Skil 736 type carbide tipped, fluted drill bits and requires no fluid to clear holes during operation.

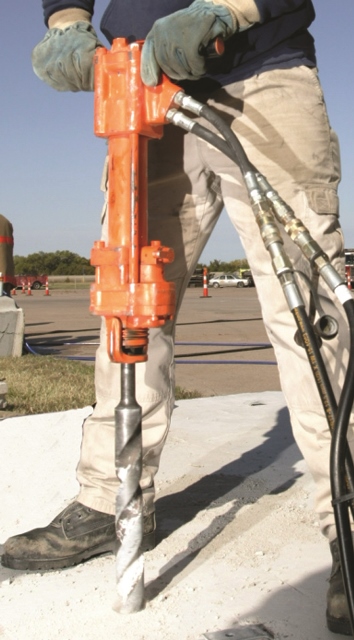

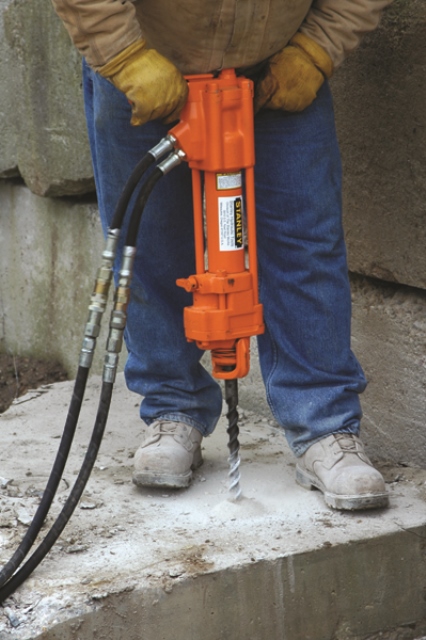

HD45 Hidrolik Darbeli Matkap Uygulama 01    HD45 Hidrolik Darbeli Matkap Uygulama 02

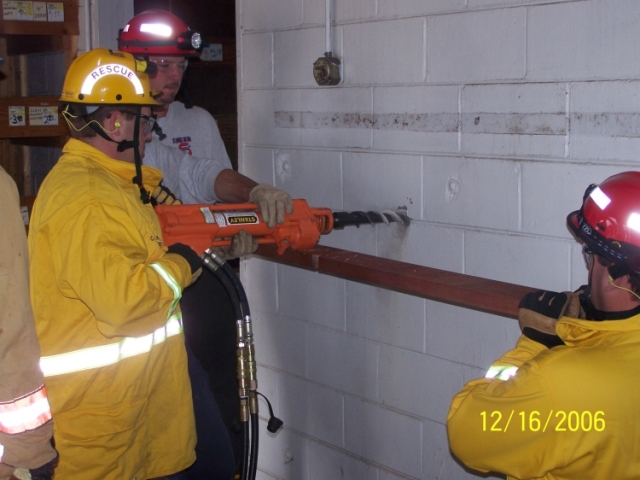

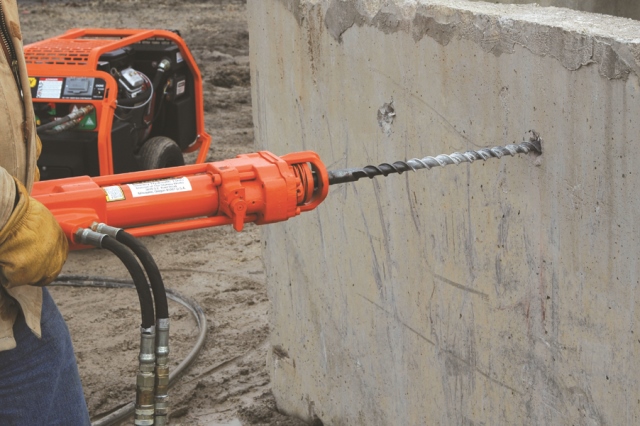

HD45 Hidrolik Darbeli Matkap Uygulama 03   HD45 Hidrolik Darbeli Matkap Uygulama 04

Features:

(+) 7-9 gpm (26-34 lpm) operating flow

(+) Adjustable rotation speed up to 300 rpm

(+) Feathering ON/OFF trigger

(+) Nitrogen charged accumulator

(+) Forward/reverse rotation control

unite    hidro    ismakinasi    kamyon 1    traktor

uygulama-hidrolik-ekipman

 logo-stanley
HD45

TECHNICAL
SPECIFICATIONS

Chuck Capacity
Up to 2 in dia. (or)
4 in core;
#736 Skil Hex
Rotation Speed
0-300 rpm
Hydraulic Flow
26-34 lpm
Hydraulic PRessure
105-140 bar
Weight
20 kg
Length
57 cm
Width
35 cm
Couplers
HTMA Flush Face

Underwater Model
HD45 uw

Recommended
together

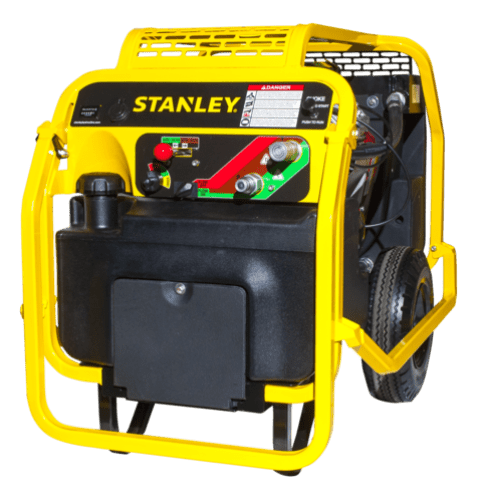

Stanley-HP8-hidrolik-guc-unitesi

HP8

Stanley-BR45-hidrolik-kirici

BR45

Stanley-GR30-hidrolik-taslama

GR30
