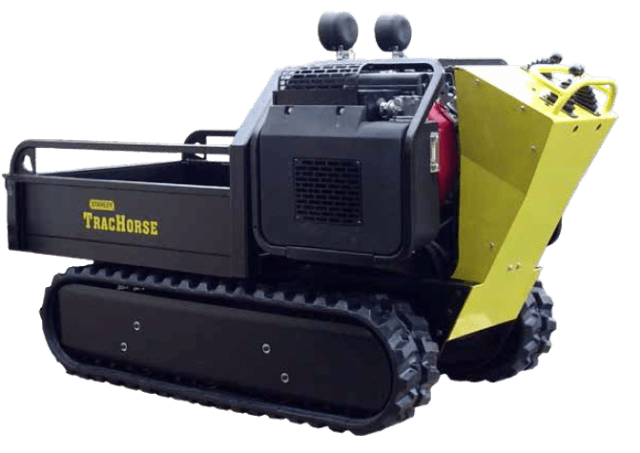

Hydraulic Power Unit Stanley MHP3 TracHorse

Stanley MHP3 Çok Amaçlı Paletli Hidrolik Güç Ünitesi

The TracHorse® is an all-terrain, self-propelled mobile hydraulic power pack that allows transportation of tools and equipment in most job site environments. Straightforward operating controls allow for maneuvering in a wide range of applications. The auxiliary hydraulic tool circuit is designed for continuous-duty applications and features the standard high-efficiency cooling found on all Stanley hydraulic power units.

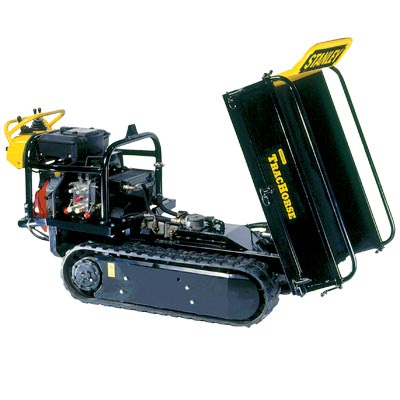

Stanley MHP3 Paletli Hidrolik Güç Ünitesi 2 MHP3 Paletli Hidrolik Güç Ünitesi Uygulama 01 MHP3 Paletli Hidrolik Güç Ünitesi Uygulama 02

 video-link  Video

Features:

(+) 5 or 10 gpm operating range

(+) Dead-man type control valves

(+) Integrated hydraulic tool circuit with HTMA quick disconnect couplers

(+) Self propelled rubber tracks equipped with self adjusting track tensioner

(+) Turns 360 degrees within its own length, reversable, and climbs 60% grade

(+) Carries over 1,000 lbs/454 kg

(+) Large lifting eye for easy loading/unloading

(+) Integral brake holds unit on incline upon release of controls

Stanley-HP8-hidrolik-guc-unitesi-uygulama-08

 logo-stanley
MHP3

TECHBICAL
SPECIFICATIONS

Engine Type
Gasoline
Power / Brand
20 HP Honda
Hydraulic Flow
2x20 lpm
1x38 lpm
Hydraulic Pressure
140 bar
Weight
544 kg
Dimensions
198x92x109 cm
ETHMA
C-E
Couplers
HTMA Flush Face


Recommended
together

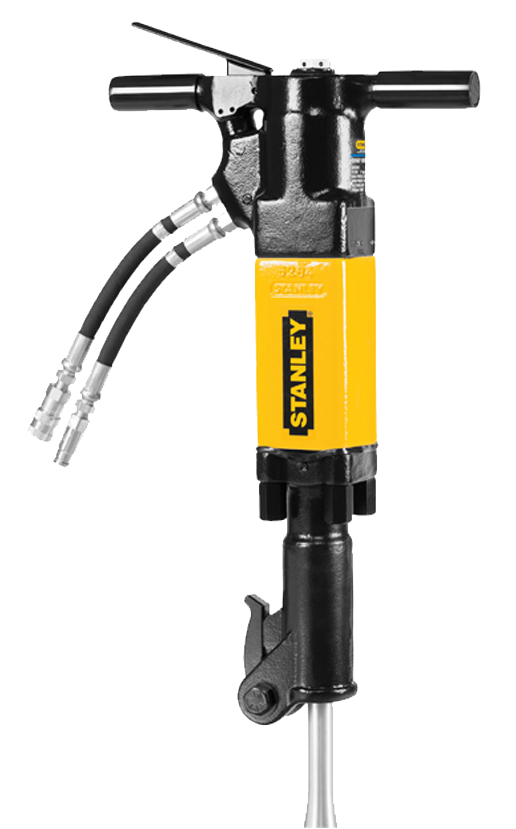

Stanley-BR87-hidrolik-kirici

BR87

Stanley-TA54-hidrolik-tokmak

TA54

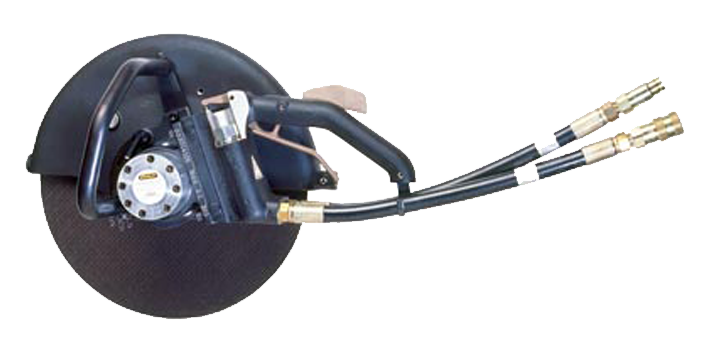

Stanley-CO25-hidrolik-kesici

CO25
